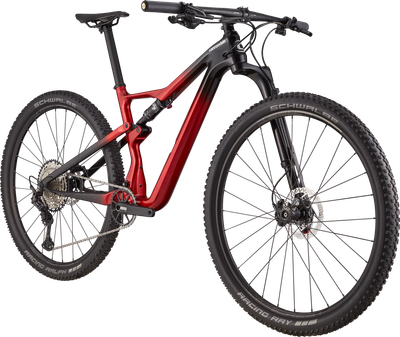

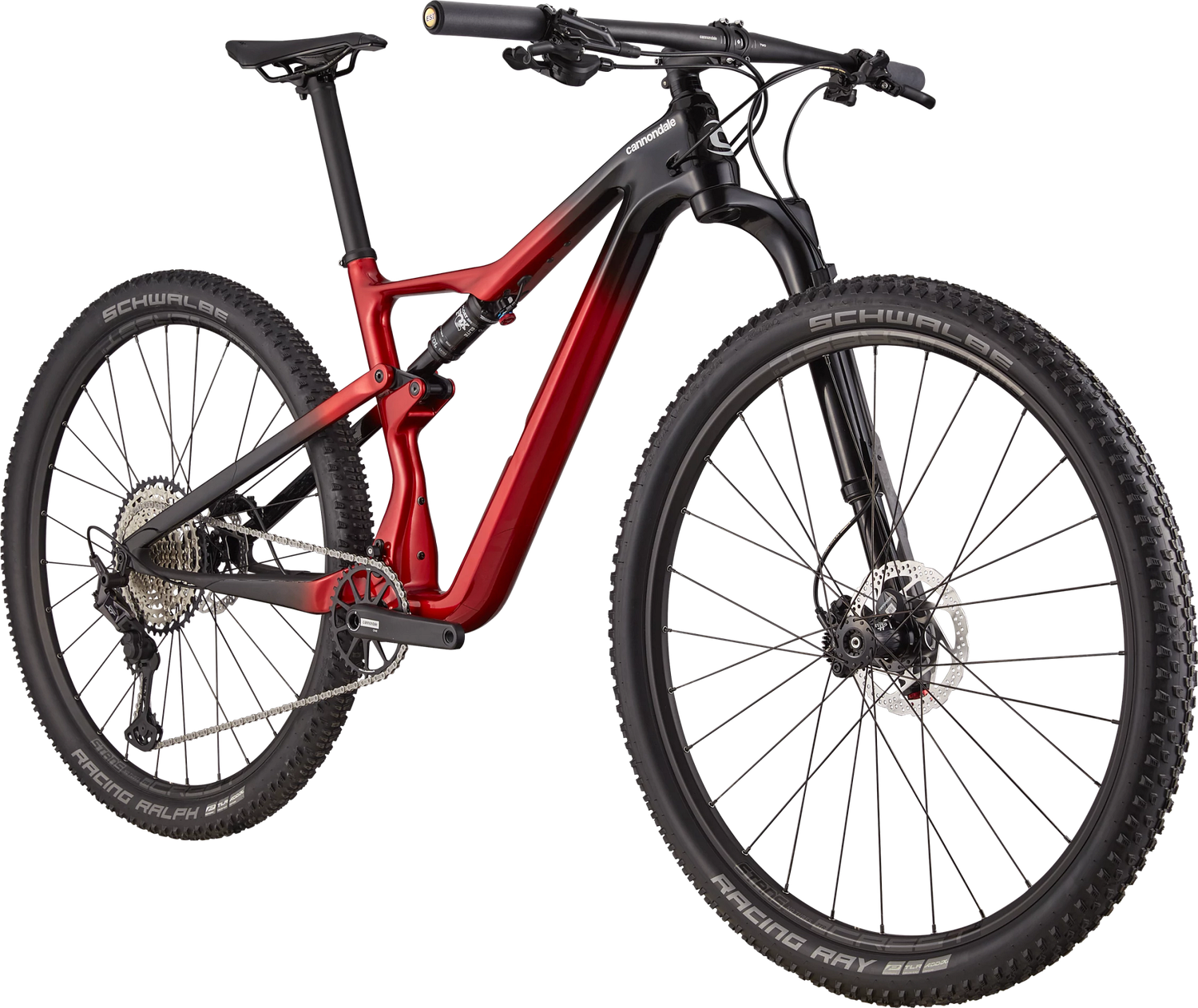

Cannondale Scalpel Carbon 3

DETAILS

• Platform

  Scalpel
• Model Name

  Scalpel Carbon 3
• Model Code

  C24401M

FRAMESET

• Frame

  Scalpel Carbon, 100mm travel, Proportional Response Tuned, FlexPivot Chainstay, PF30-83, Tapered Headtube, Speed Release 12mm thru axle, Ai Offset, Stash compatible
• Fork

  Lefty Ocho, 100mm, Chamber Damper with remote lockout, OppO Spring System, tapered steerer, 55mm offset
• Headset

  Integrated, 1-1/8 to 1.5", sealed angular contact bearings
• Rear Shock

  Fox Float DPS Performance Elite EVOL, remote lockout, adjustable rebound

DRIVETRAIN

• Rear Derailleur

  Shimano XT
• Shifters

  Shimano SLX, 12-speed
• Chain

  Shimano SLX, 12-speed
• Crank

  HollowGram, BB30a, OPI SpideRing, 34T, Ai offset
• Rear Cogs

  Shimano SLX, 10-51, 12-speed
• Bottom Bracket

  Cannondale Alloy PressFit30

BRAKES

• Brakes

  Shimano Deore hydraulic disc, 160/160mm RT54 rotors
• Brake Levers

  Shimano Deore hydraulic disc

WHEELS

• Rims

  Stan's NoTubes Crest S1, 28h, tubeless ready
• Front Hub

  Lefty 60
• Rear Hub

  Shimano MT510 12x148
• Spokes

  DT Swiss Champion
• Tires

  (F) Schwalbe Racing Ray Performance, 29 x 2.25", Addix Compound, tubeless ready, (R) Schwalbe Racing Ralph Performance, 29 x 2.25", Addix Compound, tubeless ready
• Tire Size

  2.25
• Wheel Size

  29
• Front Tire

  Schwalbe Racing Ray Performance, 29 x 2.25", Addix Compound, tubeless ready
• Rear Tire

  Schwalbe Racing Ralph Performance, 29 x 2.25", Addix Compound, tubeless ready

COMPONENTS

• Handlebar

  Cannondale 2 Flat, butted 2014 Alloy, 31.8mm, 3° rise, 8° sweep, 760mm
• Stem

  Cannondale 3, 6061 Alloy, 31.8, 7°
• Grips

  Cannondale XC Silicone
• Saddle

  Prologo Dimension NRD, STN rails
• Seatpost

  Cannondale 2, 7075 Alloy, 31.6 x 400mm

CONNECTIVITY

• Wheel Sensor

  Cannondale Wheel Sensor
