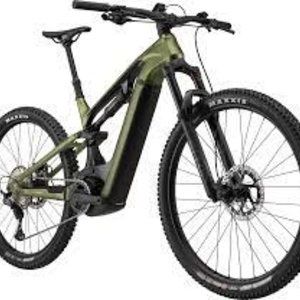

Cannondale Moterra Neo Carbon 2

DETAILS

• Platform

  Moterra Neo
• Model Name

  Moterra Neo Carbon 2
• Model Code

  C25272U

FRAMESET

• Frame

  Moterra Neo Carbon Front Triangle, SmartForm C1 Alloy Swingarm, 150mm travel, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH hanger, post mount brake, 1.5” – 1.8” tapered headtube, 18mm two-bolt kickstand mount
• Fork

  RockShox Lyrik Select, 150mm, DebonAir, 15x110mm thru-axle, tapered steered, 44mm offset
• Headset

  Acros integrated sealed bearing, tapered
• Rear Shock

  RockShox Deluxe Select+, DebonAir, 2-Pos mode adjust, adjustable rebound

E-SYSTEM

• Drive Unit

  Bosch Performance Line CX 250W
• Battery

  Bosch PowerTube 750Wh
• Charger

  Bosch 4A
• Display

  Bosch Kiox 300 w/ LED remote

DRIVETRAIN

• Rear Derailleur

  Shimano XT
• Shifters

  Shimano SLX, 12-speed
• Chain

  Shimano SLX, 12-speed
• Crank

  FSA Bosch E-bike w/ 55mm chainline, 160mm, 34T
• Rear Cogs

  Shimano SLX, 10-51, 12-speed

BRAKES

• Brakes

  Shimano MT520 4-piston hydraulic disc, 203/203mm RT64 rotors
• Brake Levers

  Shimano MT501 hydraulic disc

WHEELS

• Rims

  WTB ST i30 TCS, 32h, tubeless ready
• Spokes

  DT Swiss Champion
• Tires

  (F) Maxxis Minion DHF, 29 x 2.6", EXO, tubeless ready / (R) Maxxis Rekon, 29 x 2.6" (27.5x2.6" - size Small), EXO, tubeless ready
• Tire Size

  2.6
• Wheel Size

  29
• Hubs

  (F) Formula 15x110mm thru-axle / (R) Shimano MT410, 12x148mm thru-axle
• Front Tire

  Maxxis Minion DHF, 29 x 2.6", EXO, tubeless ready
• Rear Tire

  Maxxis Rekon, 29 x 2.6" (27.5x2.6" - size Small), EXO, tubeless ready

COMPONENTS

• Handlebar

  Cannondale 3 Riser, 6061 Alloy, 25mm rise, 8° sweep, 5° rise, 800mm
• Stem

  Cannondale 2, 6061 Alloy, 35mm, 0°
• Grips

  Fabric FunGuy
• Saddle

  Fabric Scoop Shallow Sport, steel rails
• Seatpost

  Cannondale DownLow Dropper, internal routing, 31.6, 125mm (S), 150mm (M), 170mm (L-XL)
